KZ900 Special Build Machine
- 07/08/2019
136 views

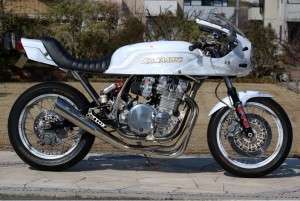

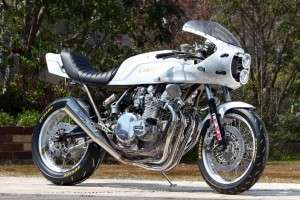

The Endurance Cafe Racer Solo Seat with an aggressive position of a clip-on handlebar.
It can be converted to a racing specification with an ideal suspension mount and frame reinforcement by changing the suspension mounting position, and it is possible to apply around the cowl mount, headlight mount and rear fender which is unique to SBM. It is said to be a symbol of a racer. It is also possible to operate the main key, seat lock, and handlebar lock by using One Key Function. This special build machine uses excellent performance parts and can endure everything from street to circuit.
2015 Concept Model Specification Details | |
Engine | Full Overhaul The consumable parts such as the valve, valve guide, and idler are new. Crank centering & balancing, Mission Resolution Cleaning, Z1000 J Clutch Conversion |
Displacement | 930cc Casting Piston 1.0mmO/S |
Exhaust | PMC LOUDEX Exhaust System Racing/Up Mount |
Carburetor | KEIHIN CR31 Smooth STREAM Airstream Series, Power Filter Selected Throttle Kit Type-2 |

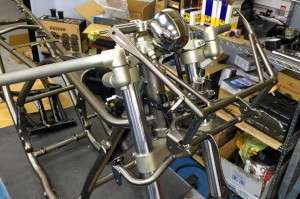

Frame | Blasting Treatment, Urethane Coating with Hard Burned color, 10-position Reinforced, Steering Damper Mount Added, Cowl Frame Mount Processing |
Swingarm | PMC Round Swingarm with Stabilizer |
Front Fork | KYB 38mm Triple Clamp Type-2 |
Rear Shock | YSS S362 |
Front Wheel | DID Aluminum 2.50-18, BUCHANANS Stainless Steel Spoke |
Rear Wheel | DID Aluminum 4.00-18, BUCHANANS Stainless Steel Spoke |
Front Brake | F320mm Works Expanded Disc Rotor AP Racing CP2696 Caliper Nissin Radial Master (Reserve Tank Integrated Model) |
Rear Brake | F250mm Works Expanded Disc Rotor AP Racing CP2696 Caliper Nissin Rear Master (Black Paint) |

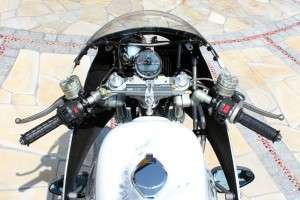

Handlebar | TOMMASELLI Adjustable Clip-on Handlebar ZX Type Handlebar Switch |
Footpeg | PMC Billet Rearsets Type-2 |
Exterior | Cafe Racer Cowl, Endurance Long Tank, H2 Tail Cowl |
Paint | Special Paint Specification (Painted by Rustic) |
Seat | H2 Seat Assembly Solo Seat Processing Tuck Roll Specification |
Special Thanks
Advisor | TAVAX Engineering | Processing of swing arm and a suspension frame mount |
O-TEC SUZUKA | LOUDEX Exhaust System Up-mount Processing | |
Parts | Magical Racing | Racer Replica Mirror etc. |
Teramoto Co.,Ltd | T-REV Internal Pressure Control Valve | |
Acewell by ABC Co., Ltd | Acewell Digital Meter etc | |
Kowa Co., Ltd. | Chromoly Axles, etc. | |
American Dream | Cafe Racer Cowl Kit etc. | |
Doremi Collection | H2 Tail Cowl etc. | |
Dunlop Motorcycle Corporation | aa13 Tyre | |
Paint | Rustic | Exterior Universal Aluminum Rim Art Paint |
Wet Blast | Double-up Motorcycle | Wet blasting of engine surface |
