2017 MV Agusta F4 RC Unveiled

  • 21/10/2016
  •  267 views

2017 MV Agusta F4 RC Unveiled - MV Agusta F4 RC 15

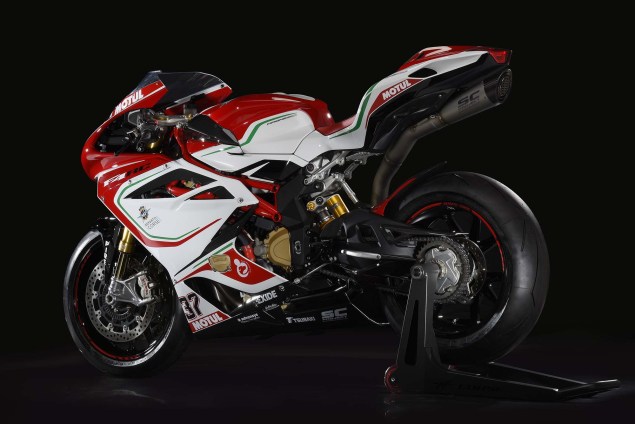

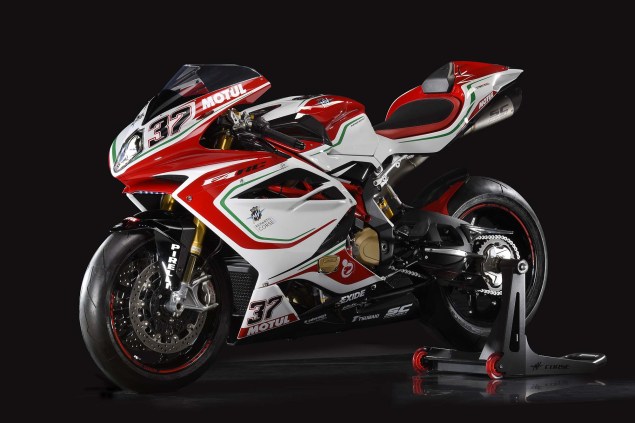

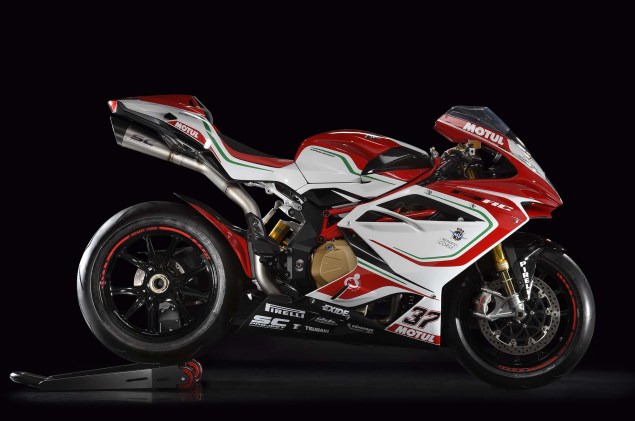

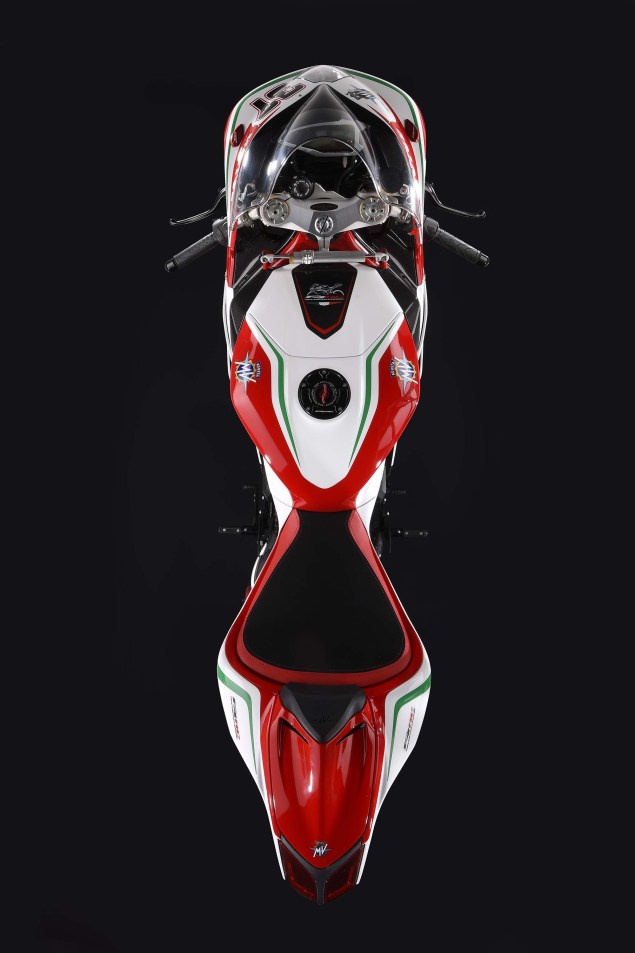

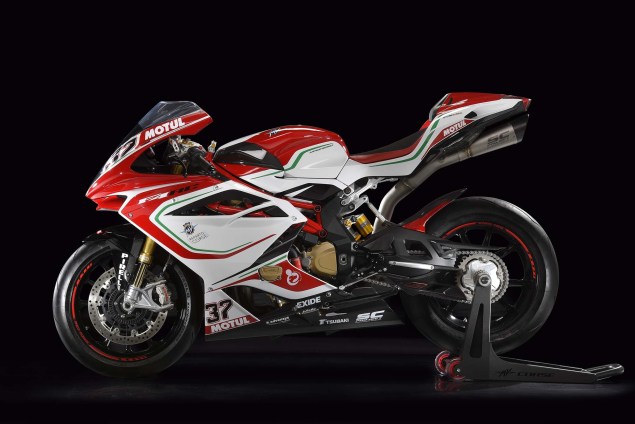

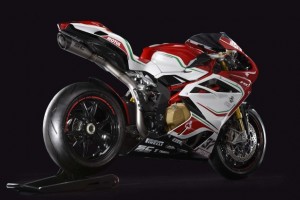

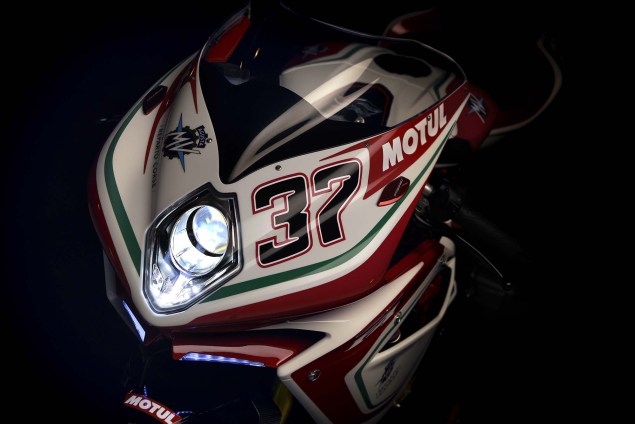

Elegant and simple, the F4 RC is instantly recognizable with a stunning red and white graphic base as that used on the official version, including sponsor logos. The number “37” embellished on the fairing is a reminder of the constructors World titles won by MV Agusta.

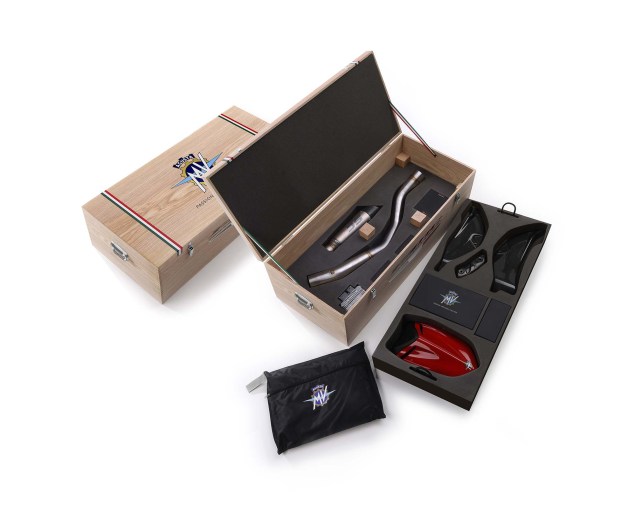

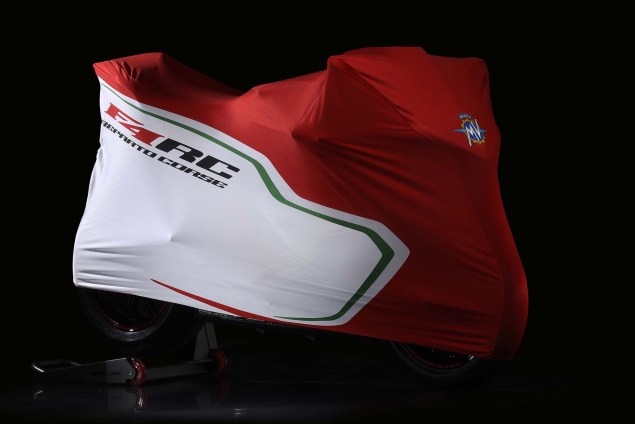

Each of the 250 pieces that make up the total production of the new F4 RC, is a real collector’s item accompanied with a valuable racing kit. The classic wood box contains high quality components, specifically designed and built for the racing F4 RC.

2017 MV Agusta F4 RC Unveiled - MV Agusta F4 RC 14

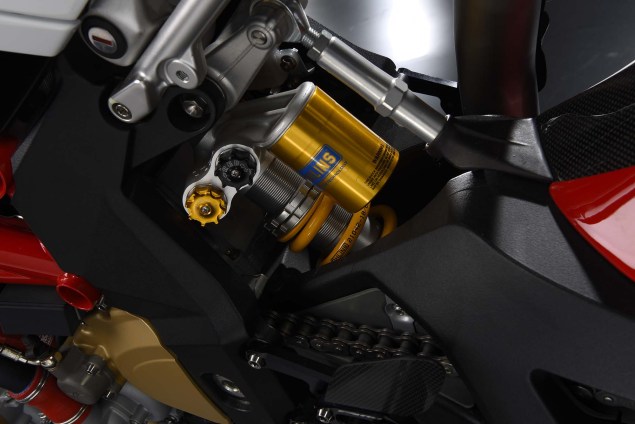

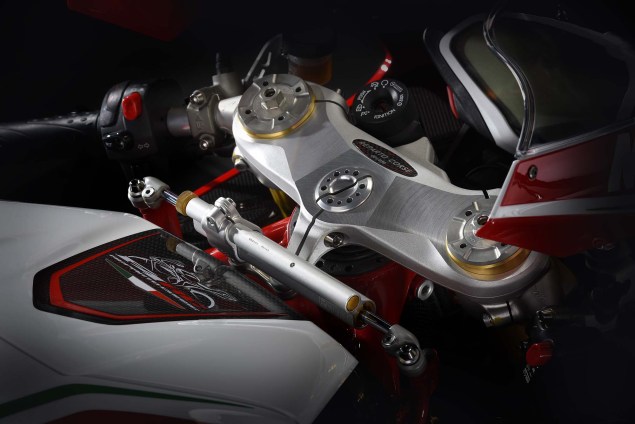

Racing suspension completes the package of absolute excellence: the Ohlins fork USD NIX type 30 with TiN surface treatment has separate hydraulic compression adjustment (left leg) and rebound damping (right leg); spring preload is also permitted. The Ohlins TTX 36 shock with piggyback reservoir offers the same parameters of adjustment as the fork through convenient manual mechanical adjusters. Included is also a precisely engineered steering damper with manual adjustment.

2017 MV Agusta F4 RC Unveiled - MV Agusta F4 RC 19

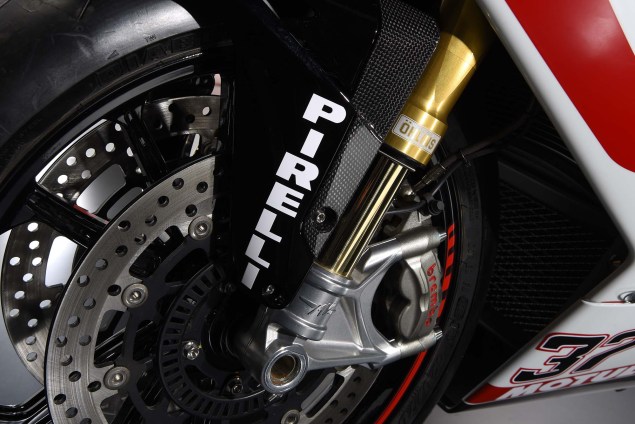

The braking system matches the performance, being composed of a pair of front 320 mm diameter discs with steel braking areas, aluminum flanges and a radial pump,  as well as Brembo GP 4-piston (30 mm in diameter) radial calipers. The rear steel disc is 210 mm in diameter with 4-piston caliper. The Bosch ABS 9 Plus with RaceMode utilizes a RLM (Rear wheel Lift-up Mitigation) system to prevent rear wheel lift under heavy braking.

2017 MV Agusta F4 RC Unveiled - MV Agusta F4 RC 17

The Electronic Control Unit is based on efficiency with a specific goal; the aim is to guarantee the ultimate control of the bike for the pilot, without reducing sensibility ; that sensibility combined with the talent and experience of the pilot can make the difference when a tenth of a second per lap matters.

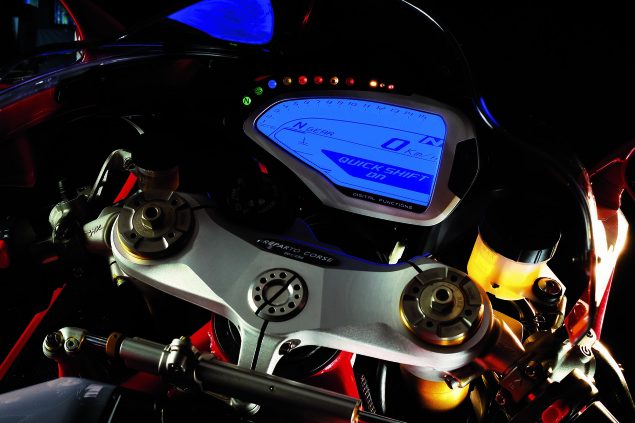

The technology MVICS 2.0 (Motor & Vehicle Integrated Control System) allows you to command many parameters, including throttle sensitivity, maximum torque, engine brake, engine response and rev limiter intervention. The inertial platform with a trim sensor utilizes three gyroscopes and accelerometers to determine a precise operation of the traction control on 8 levels. It can also be switched off entirely. Shifting is aided with the 2.0 EAS (Electronically Assisted Shift) Quick Shift is part of the standard specification.

Information Source: MV Agusta
